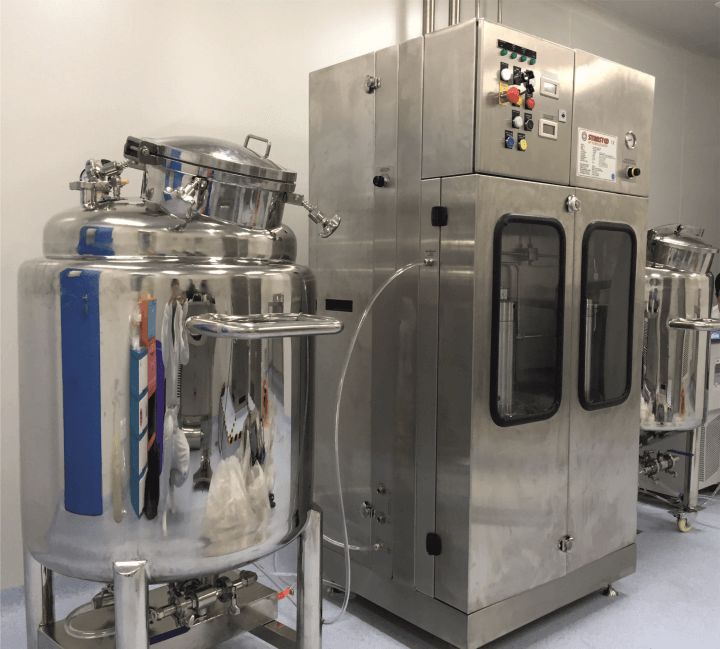

The nG7575 range of pilot scale high pressure homogenisers offer unrivalled performance and versatility for process R & D, process refinement and small scale production

Using SFP’s proven electro-hydraulic system and precise valve control system, homogenizers in the nG12500 are equally at home handling the most sophisticated applications and running small volume production.

Our Pilot Homogenizer's offer the following:

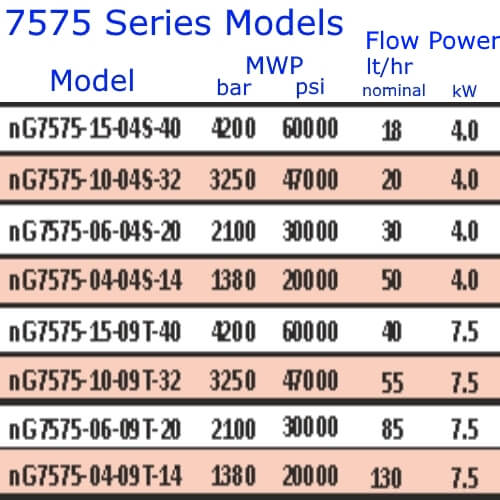

Single intensifier and twin intensifier versions, for continuous operation at working pressures up to 420 MPa (60,000 psi, 4200 bar) with flow rates up to 125 l/hr.

Processing options of piston gap valves and micro channels (interaction chambers) to ensure optimised and customised processing to suit the application.

PLC based control logic now with touch screen HMI interface with integral data logging of primary process parameters (pressures and temperatures) and communications options to third parts systems. Software and data logging suitable for production pharmaceutical applications.

Temperature control with heat exchanger options for system inlet, in process and outlet post process. While primarily for process cooling for applications such as SLNs and Liposomal preparations requiring higher temperatures combinations of heating and cooling can be provided.

Wetted surfaces are polished to meet typical industrial pharmaceutical and biotech requirements.

Corrosion resistant materials on all product wetted surfaces and ultra-high-grade corrosion resistant steels on main pressure containment elements. Technical ceramics, PCD and tungsten carbide on critical high wear components.

Stainless steel enclosure with transparent viewing windows and interlocked hinged front cover doors.

CIP and SIP capability.

Full documentation packs, provision of DQ/IQ/OQ.

Designed and manufactured by Homogenising Systems, our homogenisers are fully supported with global installations.
